THE HEIST
Our all-out freeride/park rig
180mm of plush travel.
This is our gravity dedicated machine, designed for playing and racing alike.
Possessing the same steel and aluminum DNA as the rest of our lineup, this model is dedicated to massive hits and the high speed of gravity play.
Build it with a double or single crown fork and go find the biggest mountain you can.
Alpha tech
makes this the most pro ride on the market.
Build it for flow, or tech, and take advantage of custom geometry to match the handling to your style and trails.
- Cromoly steel front triangle with billet/welded aluminum rear triangle
- Trunnion Architecture for stiffness and bearing longevity with vault sealed pivot bearings

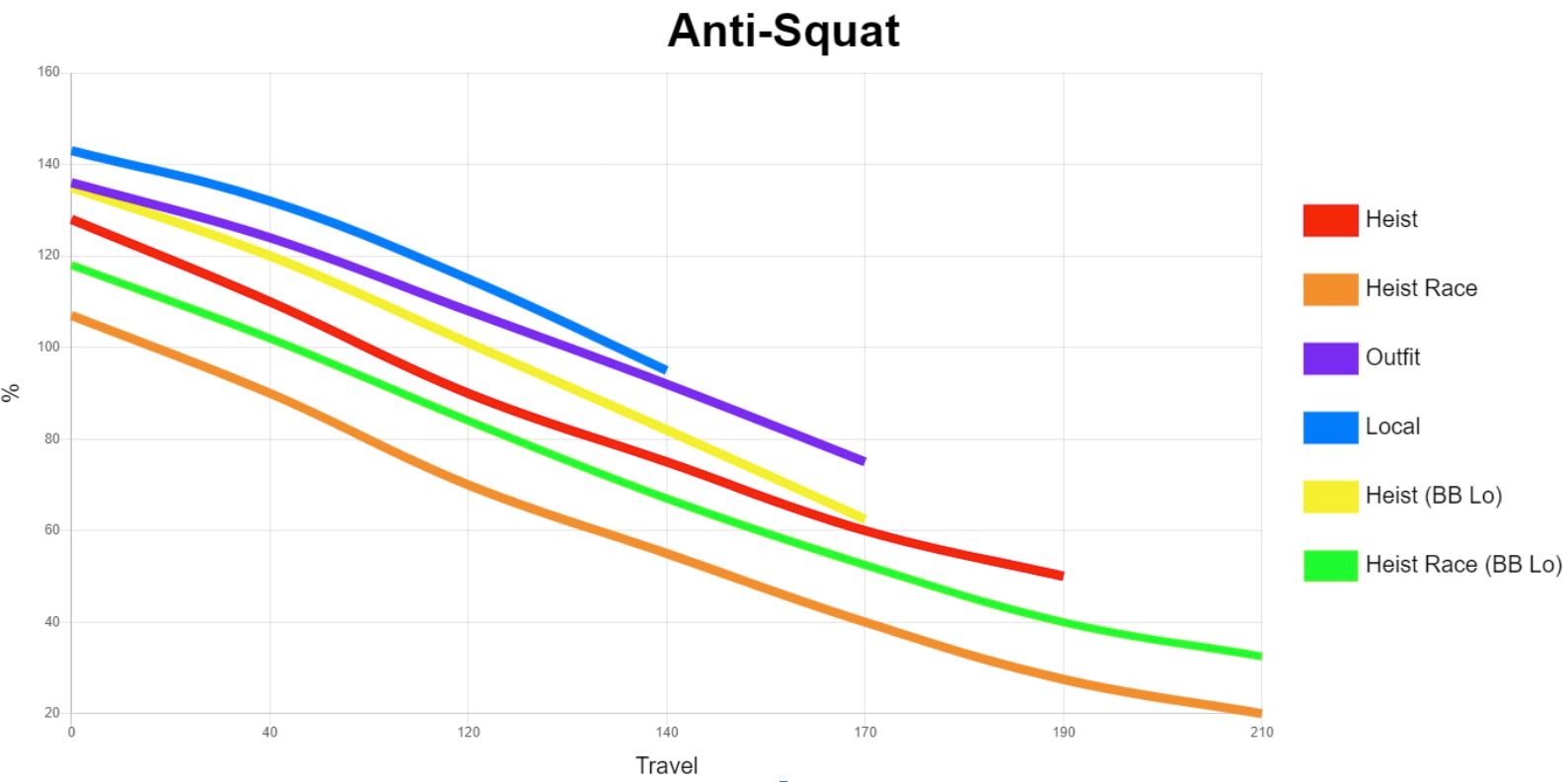

- Adjustable pedal platform: choose your balance pedalling and suspension efficiency
- Adjustable seat angle. +or- 1degree
- Adjustable chainstay length +or- 10mm
- Two stage slack flip chips for detailed ride tuning
- 26, 27.5 and 29 wheel compatible
- Suitable for air and coil shocks alike with 25% progressivity
PRICING
FRAMESET ONLY
Starting at
$6000CAD
(free shipping)
Base Frameset Price Includes: Cane Creek40 headset / RaceFace Dual Row BB / Seat Clamp / Rear Axle
Option Packages are primarily price point based - substitutions welcome
50% deposit required to initiate build - all Framesets are made to order and take approximately 8-10 weeks to build and deliver.
ESSENTIALS BUILD
Staring at
$7050CAD
(free shipping)
Substitutions welcome
| MODEL | OPTION 01 - $8190 CAD | OPTION 02 - $9240 CAD |
|---|---|---|
| HEIST | Rear Shock: Marzocchi Bomber CR | Rear Shock: Fox DHX2 Coil |
| Fork: Marzocchi 58 200mm | Fork: Fox 40 200mm | |
| Wheelset: RaceFace Atlas | Wheelset: RaceFace Atlas | |
| Crankset: RaceFace Atlas | Crankset: RaceFace Atlas | |
| Dropper Post: RaceFace Turbine | Fox Transfer Factory |
FEATURES
sizing / geometry
We've distillled our geo chart down to the essential details. Once we've consulted with you, we'll provide a fully detailed chart for your bespoke machine./
All data in charts present the model with standard geometry prior to customization and fitting, and with 27.5 wheels.
| Your Height | 5'0" - 5'4" | 5'4" - 5' 9" | 5'9" - 6'1" | 6'1" - 6' 9" | ||||
|---|---|---|---|---|---|---|---|---|
| Frame Size | XS | S | S+ | M | M+ | L | L+ | XL |
| Reach | 420 | 430 | 445 | 460 | 475 | 490 | 505 | 520 |
| Head Angle/Length | 65/110 | 65/115 | 65/115 | 65/115 | 65/125 | 65/125 | 65/135 | 65/135 |
| Effective Seat Angle | 76 | 76 | 76 | 76 | 76 | 76 | 76 | 76 |
| Stack Height | 585 | 590 | 589 | 589 | 598 | 598 | 608 | 608 |
| BB Drop/hi/lo | 7.5/12.5 | 7.5/12.5 | 7.5/12.5 | 7.5/12.5 | 7.5/12.5 | 7.5/12.5 | 7.5/12.5 | 7.5/12.5 |
| Chainstay length | 420/430 | 420/430 | 430/440 | 430/440 | 440/450 | 440/450 | 440/450 | 440/450 |

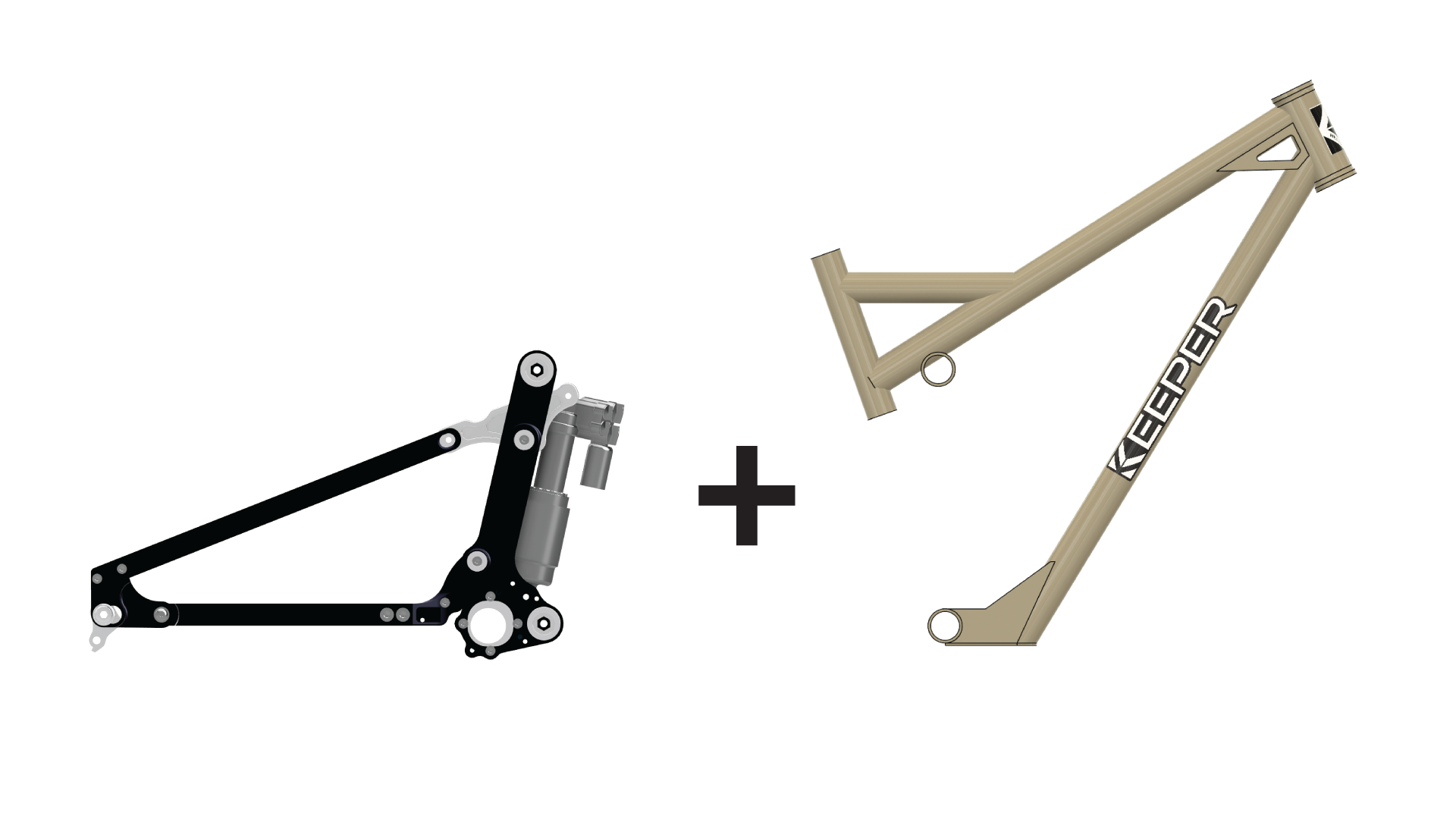

build
CroMo steel front triangle - energetic, stable, tuneable
Billet aluminum rear triangle - adjustable and tuneable

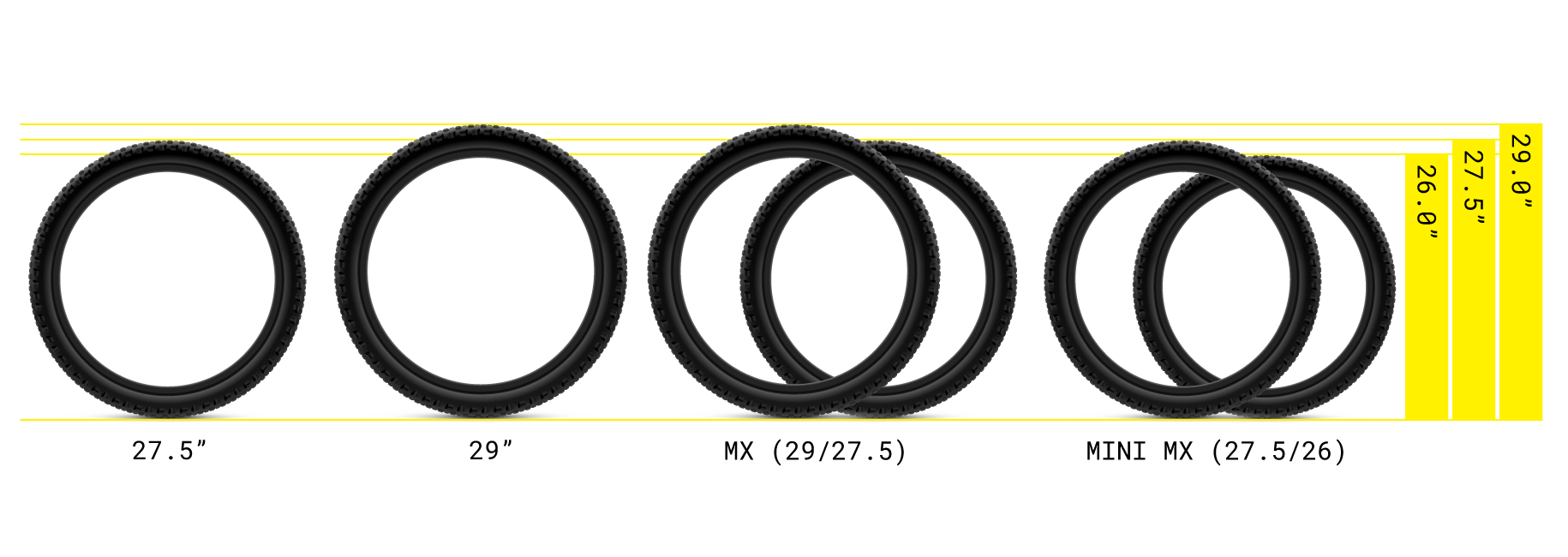

wheel sizes/custom builds
Every model is avaialbe in multiple wheel size configurations
29”, 27.5”, and MX (29/27.5) and mini MX (27.5/26)
We consult with you about what your dream setup should look like

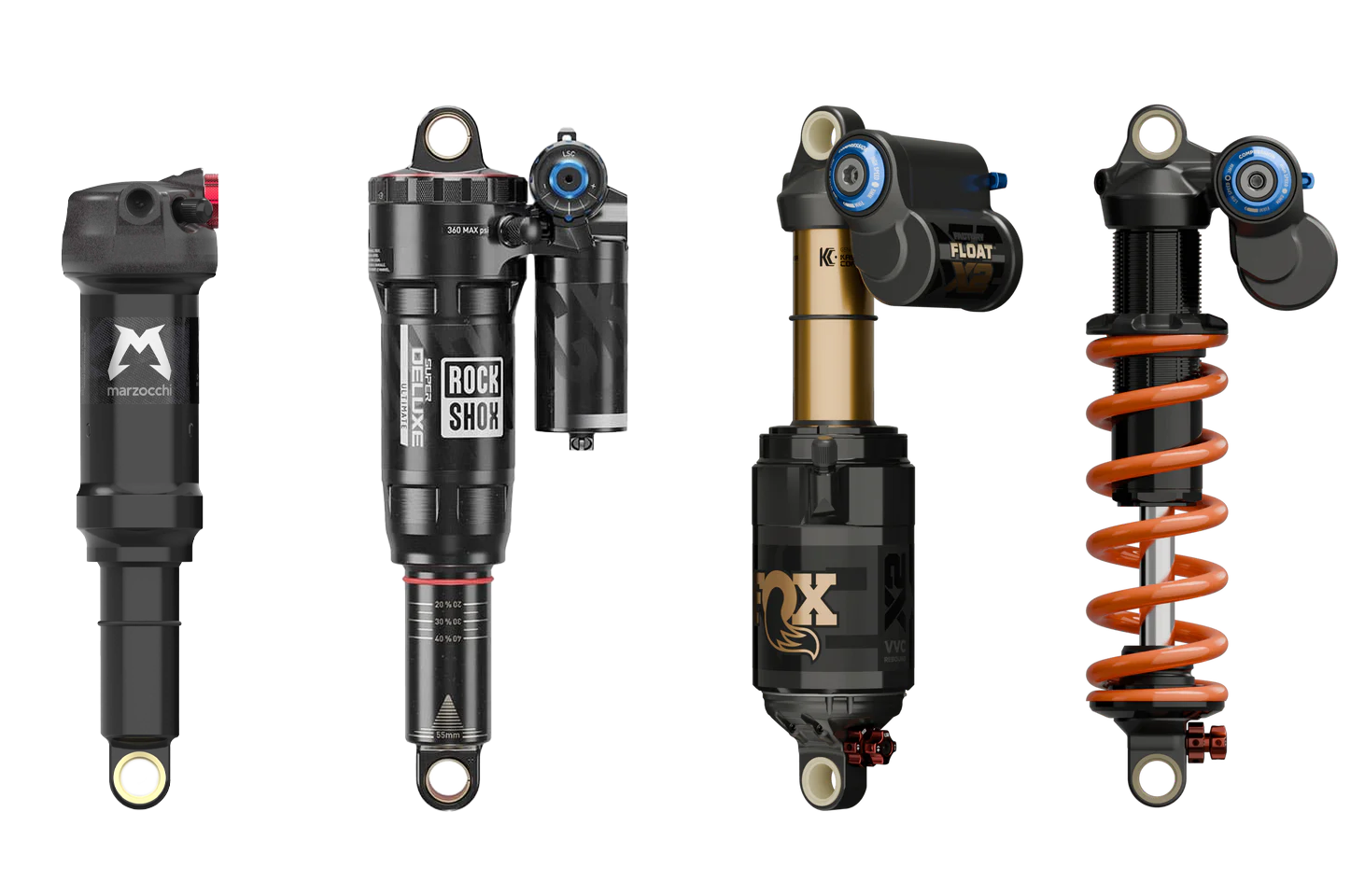

suspension
LOCAL - 140mm travel suitable for coil or air with 20% progressivity
OUTFIT - 160mm travel suitable for coil or air with 25% progressivity
HEIST - 180mm travel suitable for coil or air with 25% progressivity
Build your frameset around specific suspension models for stunning visuals and optimized performance.
customize
Choose your colourway and take advantage of the opportunity to match your suspension units and other components for a stunning effect. Own a dream bike.
sweet spot enalbed
- Take advantage of our made-to-order build process and optimize your frame fitment for comfort and performance at the design level
- Flip chips and compliance tuning deliver performance the pros get
- Multiple BB settings for:
Adjustable seat angle (76/77deg)
Adjustable pedal platform (firm/open)

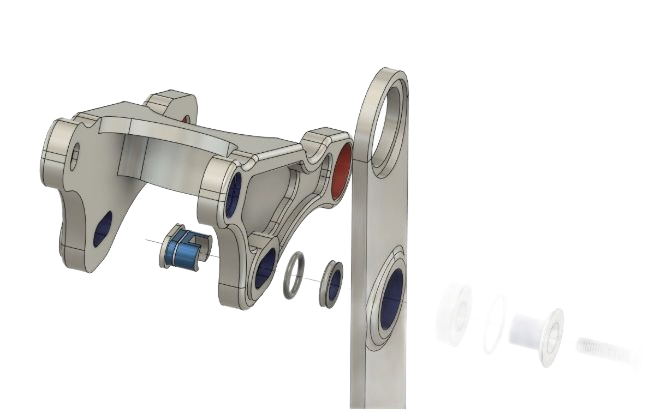

primo pivot points
We cut no corners and install top shelf Enduro Bearings in all pivot points.
Vault sealed pivot assemblies double seal your bearings away from the elements protecting your investment and keeping maintenance simple and cost effective.
Standard fasteners put your Keeper in the "Forever Bike" realm for years to come.
frame specs
| SPEC | LOCAL | LOCAL BURLY | OUTFIT | HEIST |
|---|---|---|---|---|
| Travel Fr/Rr | 140/140 | 160/140 | 180/160 | 200/180 |
| Shock Size | 210/50 non resevoir | 210/50 resevoir | 230/60 resevoir | 230/65 Resevoir |
| Fork Compatability | 140/160 | 140/160 | 180-200 | 190-200 |
| Headset | ZS44/EC44 | ZS44/EC44 | ZS44/EC44 | ZS44/Z244 |
| Rear Hub Standard | 12x157 | 12x157 | 12x157 | 12x157 |
| Brake Mount | IS 160-220* | IS 160-220* | IS 160-220* | IS 160-220* |
| BB/Crank Compatability | BB92/80mm | BB92/80mm | BB107/83mm | BB107/83mm |
| Tire Clearance | 2.5 | 2.5 | 2.5 | 2.5 |
| Seat Tube Diameter | 31.6/35 | 31.6/35 | 31.6/35 | 31.6/35 |
| Chain Guide | ISCG05 | ISCG05 | ISCG05 | ISCG05 |
| Frameset Weight (lbs) | 8.5 | 9.5 | 10 | 10 |
*180mm minimum rotor diameter suggested. Typical LOCAL finished build weight: 33-36lbs. Typical OUTFIT/HEIST finished build weight: 36-40lbs
